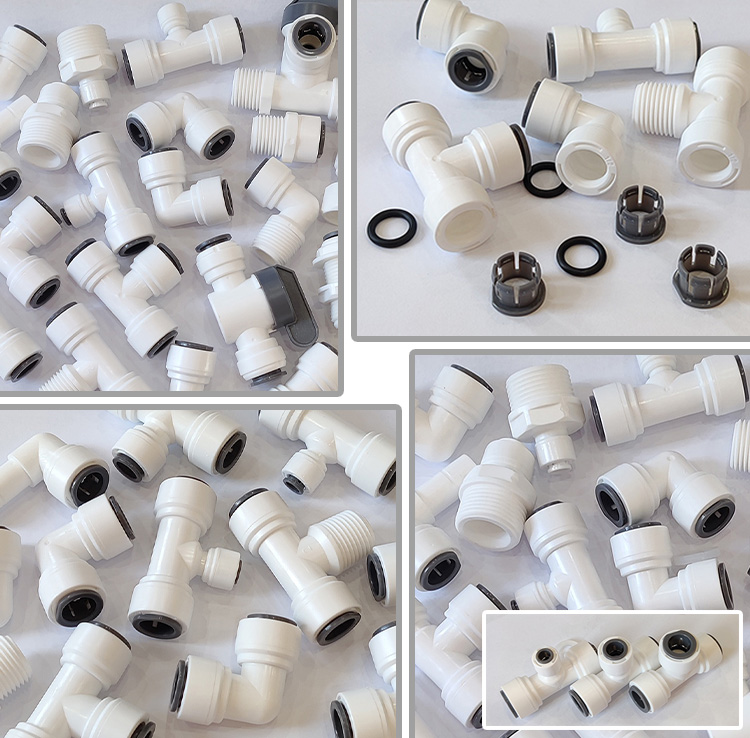

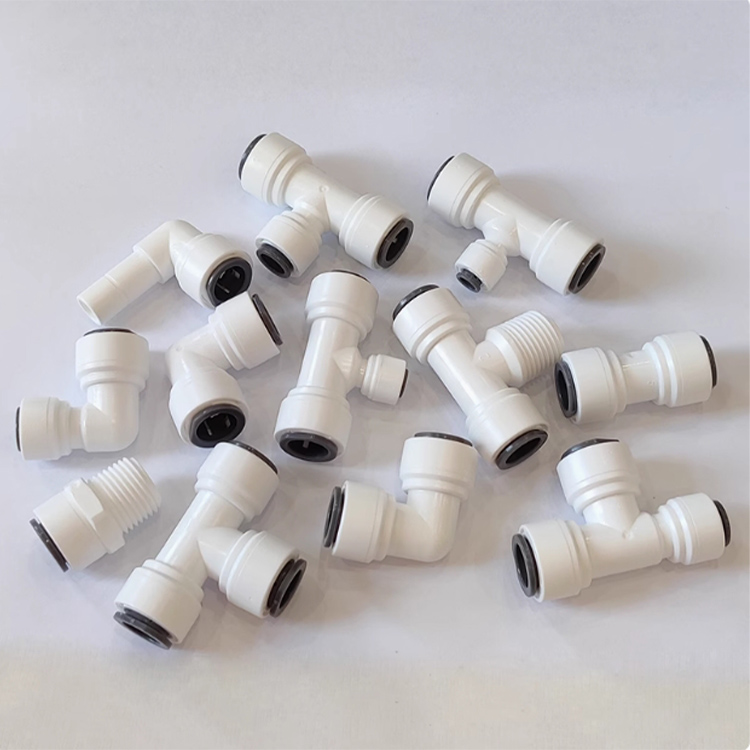

Water purifier connector accessories
Maipuda® is a professional water purifier equipment manufacturer, producing connectors and accessories suitable for various types of water purifier equipment, which can meet the needs of most households.

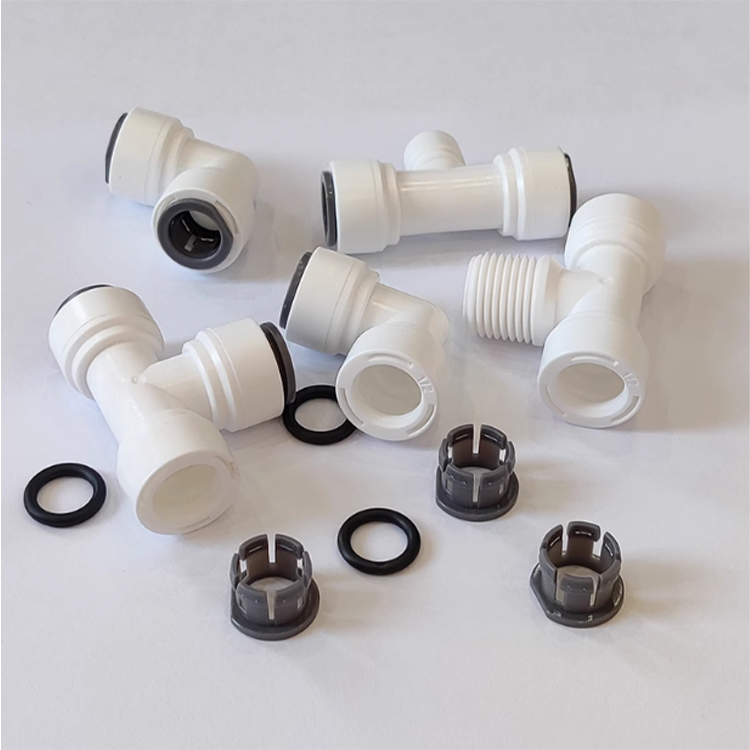

The water purifier connector accessories have built-in sealing rings and stainless steel claws, and the sealing rings are also leak-proof; the new card-free design is easy to operate and effectively achieves double sealing to provide double protection.
Buyers beware
The thread size and pipe diameter of the same specification are
different. For example, the 2-point thread mouth is 12-12.5mm, but the
2-point pipe mouth diameter is 6.0-6.5mm
All water purifier pipes produced by Maipuda® are in "imperial size"
units. This is a unified style. "Imperial size pipe diameter is
abbreviated in English as O.D. Thread diameter is in English as NPTF
| 1/3 | 1" | 9.5mm | |
| Specification | Chinese popular name | Thread diameter(NPTF) | Pipe diameter(O.D) |
| 1/4 | 2" | 12-12.5mm | 6.0-6.5mm |
| 3/8" | 3" | 16-17mm | 9-10mm |
| 1/2" | 4" | 20-20mm | 12-13mm |
| 3/4" | 6" | 25-26mm | 19-20mm |
| 1" | 1inch | 30-3lmm | 25-26mm |
