PP Filter Cartridge
• The PP filter cartridge, which is made of polypropylene, can remove the particles, impurities and dust in the water.
• This cartridge usually works as the previous cartridge to protect the behind filtration for water treatment system.
• According to the requirements, various sizes and filtration for water treatment system.
• According to the requirements, various sizes and filtration precisions are available for option
Filtration precision: 1, 5, 1 O, micron.
Length:5, 10,20inch Out diameter. 2.2, 2.4, 2.5, 4.5inch I 55mm, 80mm, 63mm, 114mm Inner diameter. 1. 1 inch I 28mm

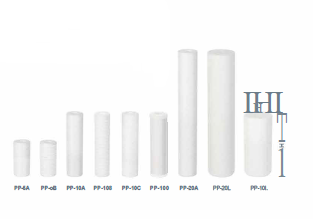

MODEL Filtration precision H lnnner D1 OutD2 Packing Dimension
PP-6A 5inch 31QX31QX525mm / 100pcs
PP-SB Slnch 310ic310ic525mm / 100pca
PP-10A 10inch 615X310X525mm / 100pcs
PP-108 1, 5, 10 micron 10inch 28mm 60/63mm 615ic310ic525mm / 100pcs
can be choaen
PP-10C 101nch 615ic310ic525mm / 100pcs
PP-100 10inch 615X31QX525mm / 100pcs
PP-20A 201nch 615ic31 Oic525mm / 50pca
PP-20L 20inch
114mm
570,c235x52omm / 1 Opes
PP-10L 10inch 5701C235ic520mm / 20pcs

Thread Filter Cartridge
• The PPW thread filter cartridge is made of by the wire wound of poplypropylene material,
The function is similar as PP cartridge, can remove the particles, impurities and dust in the water.
• This cartridge usually works as the previous cartirde to protect the behind filtration for water treatment system.
• According to the requirements, various sizes and filtration for water treatment system.
• According to the requirements, various sizes and filtration precisions are available for option
Filtration precision: 1, 5, 10, micron.
Length:5, 10,20inch Out diameter; 2.2, 2.4, 2.5, 4.5inch / 55mm, 60mm, 63mm, 114mm Inner diameter. 1.1 inch I 28mm
MODEL Flltratlon precision H lnnnerD1 OUtD2 Packing Dimension
PPW-5A 5inch 58160/63mm 3101C3101C525mm / 100pcs
PPW-10A 10inch 58160/63mm 3101C3101C525mm / 50pcs
PPW-10L 1, 5, 10 micron 101nch 28mm 114mm 570ic235x520mm / 20pcs
PPW-20A can be chosen 20inch 58160/63mm 515x310x525mm / 50pcs
PPW-20L 201nch 114mm 570x235x520mm / 10pcs

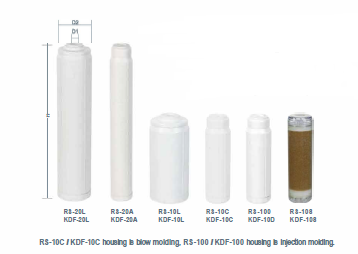

Resin Filter Cartridge
The resin filter cartridge is made of ion exchange resin and food grade cartridge housing.
It removes calcium and magnesium ions from water by exchanging them with harmless sodium ion.
KDF Filter Cartridge
The KDF filter cartridge is made up 80% coconut carbon+20% KDF.
It can remove oxidizing agents (chlorine) heavy metals hydrogen sulfide suspended solids etc.
